The HUGEROK IP-PBX series is a high-performance IP communication device that integrates voice, video, and data exchange. It can be used as the super butler in the enterprise network, and create a multimedia communication platform for the enterprise, which greatly improves the management level and market competitiveness of the enterprise. In the meantime, the HUGEROK IP-PBX series can also be used as a convergence device under the telecom operator's soft switching platform to provide stable and reliable access capabilities for telecom users.
The HUGEROK IP‑PBX series from SENXINE combines voice, video and data exchange in a single high‑performance platform. It can serve as a super‑manager for corporate networks, providing a multimedia communications hub that improves management efficiency and competitiveness, while also acting as a convergence device for telecom operators.

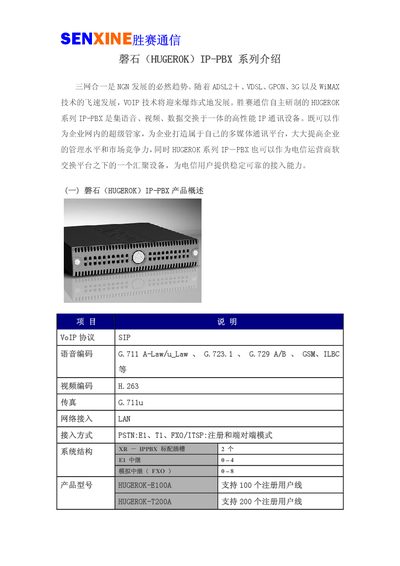

Key features include SIP‑based VoIP, support for multiple codecs (A‑Law, G.711, GSM, iLBC, etc.), flexible integration with traditional PBX systems, web‑based management, IVR, voicemail, call‑center functions, bandwidth management, and extensive protocol compatibility (SIP, H.323, WHGCP). The hardware is a 2U, 19‑inch rack‑mount unit with USB front‑panel, optional PCI cards, and operates on 220 V/180 W. This manual is written in Chinese.
| Rack size | 2U, 19‑inch |
|---|---|
| Weight | 15 kg |
| Power consumption | 220 V, 180 W |
| Front interface | USB |
| Operating temperature | 10 °C – 25 °C |
| Operating humidity | 5 % – 95 % (non‑condensing) |
| Maximum call processing capacity | 18,000 calls per hour |
The HUGEROK‑E100A supports up to 100 registered user lines.
The system supports SIP, H.323 and WHGCP protocols.
Supported voice codecs include A‑Law, G.711, GSM, iLBC and others.
Yes, it provides a web‑based management interface that can be accessed from anywhere.
