RFT101 is a special test line, which can bring out the microwave signal of the unit under test (UUT) completely through RFT101, and realize the testability of microwave product design and production.
The RFT101 is an RF test unit designed to work with components such as BCT818000001 and Murata MM8430-2610 / MM8130-2600. It offers a complete microwave signal path for the unit under test, enabling accurate measurement of microwave product performance.

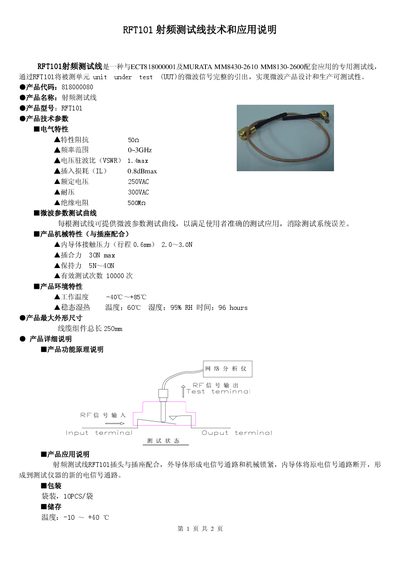

The manual lists the electrical and mechanical parameters, including characteristic impedance, frequency range, VSWR, insertion loss, voltage ratings, contact forces, life cycles, and environmental limits. It also describes the SMA connector interfaces and handling precautions for reliable operation. This manual is written in Chinese.
| Characteristic Impedance | 50 Ω |
|---|---|
| Frequency Range | 0‑3 GHz |
| VSWR (max) | 1.4 |
| Insertion Loss (max) | 0.8 dB |
| Input Voltage | 250 VAC |
| Withstand Voltage | 300 VAC |
| Insulation Resistance | 500 MΩ |
| Contact Force (stroke 0.6 mm) | 2.0‑3.0 N |
| Holding Force | 5‑40 N |
| Mechanical Life Cycles | 10 000 cycles |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -10 °C to +40 °C |
| Relative Humidity (storage) | 15 %‑85 % |
The RFT101 has a characteristic impedance of 50 Ω.
It operates from 0 GHz up to 3 GHz.
The maximum VSWR is 1.4.
It is rated for 10 000 cycles.
