Bakui PSI‑TAPE Waterproof Seam Tape User Manual

PSI-TAPE Concrete Crack Fast Repair Tape is a top product for quickly repairing concrete cracks. It can be extended and stretched, and has waterproofing function under high stable stretching force. It also maintains high moisture permeability.

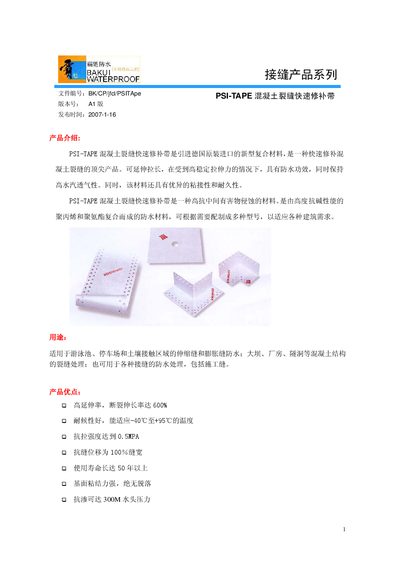

Bakui PSI‑TAPE Waterproof Seam Tape User Manual - cover page
Brand
霸魁防水
Category
Other
Document type
User Manual
Language
Chinese
Pages
3
File format
PDF
File size
152 KB
Published
23 February, 2012
Updated
30 September, 2023
MD5 checksum
FDDBDEF1A861B1B29161305C9AC4E67B

About this manual

Bakui PSI‑TAPE is a fast‑curing, waterproof repair tape for concrete cracks. It combines high‑alkali‑resistant polypropylene with polyurethane, offering high elongation, strong adhesion, and long service life. The tape is suitable for swimming pools, parking lots, dams, tunnels, and other concrete structures, as well as construction joints.

The manual explains surface preparation, application of PSI‑108 mortar, placement of the tape, and curing time. It also provides storage conditions, packaging details, and contact information for technical support. This manual is written in Chinese.

What's inside

  • Product Introduction
  • Key Features
  • Applications
  • Technical Specifications
  • Installation Procedure
  • Curing Time
  • Storage and Packaging
  • Contact Information

Specifications

Elongation at break600 %
Operating temperature range-40 °C to +95 °C
Tensile strength0.5 MPa
Joint displacement resistance100 % of joint width
Service life≥ 50 years
Water pressure resistance300 m water head
Thickness0.5 mm
Packaging size12/20 cm width × 10/50 m length, 500 m per box
Storage conditionCool, dry area, avoid heat and sunlight

Frequently asked questions

What surface preparation is required before applying PSI‑TAPE?

Clean the substrate, then apply PSI‑108 mortar 100 mm wide on both sides of the crack before placing the tape.

How long does it take for the repair to fully cure?

The repair reaches full dryness after about 7 days.

What temperature range can PSI‑TAPE withstand?

It can operate from –40 °C up to +95 °C.

What is the maximum water pressure the tape can resist?

The tape can resist water pressure up to 300 m water head.
