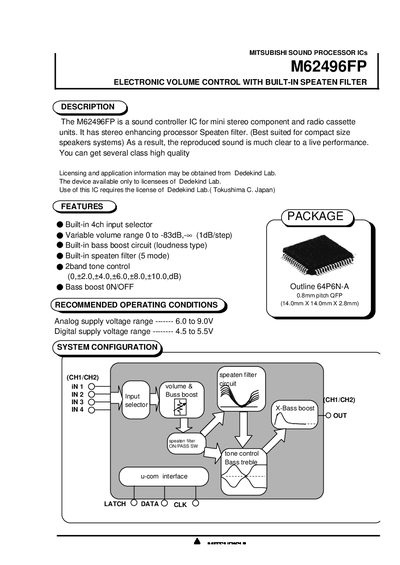

The M62496FP is a sound controller IC for mini stereo component and radio cassette units. It has a stereo enhancing processor Speaten filter, which is best suited for compact size speaker systems. As a result, the reproduced sound is much clearer, similar to a live performance. Licensing and application information can be obtained from Dedekind Lab. The device is only available to licensees of Dedekind Lab. Use of this IC requires a license from Dedekind Lab.
The M62496FP is a sound controller IC for mini‑stereo component and radio cassette units. It features a built‑in 4‑channel input selector, variable volume control, bass boost, a 5‑mode speaten filter and 2‑band tone control, aimed at compact speaker systems. The device requires a license from Dedekind Lab (Tokushima, Japan).
The document provides pin configurations, absolute maximum ratings, electrical characteristics, test circuit information and data format tables. Recommended analog supply voltage is 6.0‑9.0 V, digital supply 4.5‑5.5 V, with a maximum power dissipation of 1000 mW and operating temperature from –20 °C to +75 °C.
| Supply voltage (typical) | 10.7 V |
|---|---|
| Power dissipation (max) | 1000 mW |
| Analog supply voltage range | 6.0 V to 9.0 V |
| Circuit current (Icc) | 50–65 mA |
| Bass boost gain (100 Hz) | 6.5 dB–10.5 dB |
The analog supply voltage should be 6.0 V to 9.0 V and the digital supply voltage 4.5 V to 5.5 V.
The IC includes a built‑in 4‑channel input selector.
The maximum power dissipation is 1000 mW.
