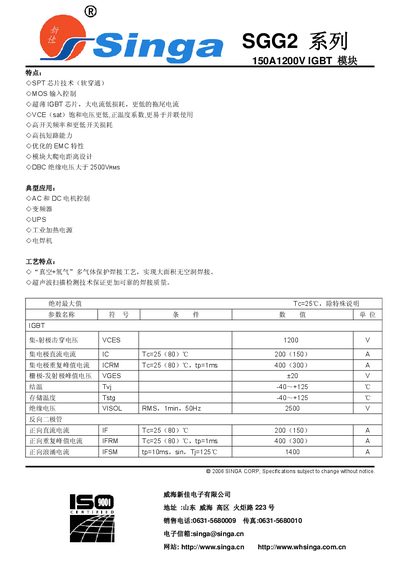

The SGG2 series 150A1200V IGBT module is a kind of IGBT module produced by Weihai Xinjia Electronic Co., Ltd. It has SPT chip technology, MOS input control, ultra-thin IGBT chip, lower VCE (sat) saturation voltage, higher switching frequency and lower switching loss, higher anti-short circuit capability, optimized EMC characteristics, large creepage distance design of the module, and DBC insulation voltage greater than 2500VRMS. Typical applications include AC and DC motor control, inverters, UPS, industrial heating power supplies, and welding machines.
The SGG2 series IGBT module from Singa is a 150 A, 1200 V power semiconductor designed for high‑efficiency switching with low on‑state loss and robust short‑circuit capability. It features low temperature coefficient, excellent EMC performance and a thin chip design for compact applications.
Typical applications include AC/DC motor drives, UPS systems, heating plates and vacuum‑based processes. The datasheet lists key electrical parameters, thermal resistance values and mechanical dimensions to aid designers in system integration. This manual is written in Chinese.
| Maximum collector current (IC) | 150 A |
|---|---|
| Collector‑emitter voltage (VCE) | 1200 V |
| Turn‑on delay (td(on)) | 125 ns |
| Turn‑off delay (td(off)) | 620 ns |
| Maximum weight | 324 g |
The module can handle up to 150 A of collector current.
The module weighs up to 324 g.
