QVF8034 is a high-performance multi-functional dual-WAN VPN firewall launched by Qno. It has 2 10/100Mbps WAN ports/4 10/100Mbps LAN ports, and supports IPSec, PPTP, L2TP and other VPN protocols, which can realize VPN transparency, VPN Hub and other functions, and also can defend against ARP attacks and worms and other viruses to protect network security.
The QVF8034 is a multi‑function double‑WAN VPN firewall featuring a high‑performance Intel IXP 266 MHz RISC processor, 8 MB Flash, and 64 MB DRAM. It supports up to 30,000 concurrent sessions, 200 Mbps bidirectional forwarding, and VPN throughput of 3DES/60 Mbps. The device provides two 10/100 Mbps WAN ports, one 10/100 Mbps DMZ port, and four 10/100 Mbps LAN ports.

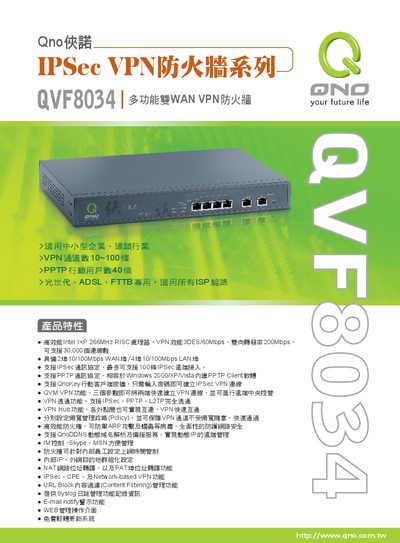

The firewall includes comprehensive security functions such as IPSec, PPTP, L2TP, and QVM VPN, with features like NAT, PAT, URL filtering, and DoS detection. Management is performed via a web interface, SNMP, syslog, and email alerts, and the system firmware can be updated online. Operating conditions are 0 °C‑45 °C temperature and 0‑90 % non‑condensing humidity. This manual is written in Chinese.
| CPU | Intel IXP 266 MHz RISC |
|---|---|
| Flash Memory | 8 MB |
| DRAM | 64 MB |
| WAN Ports | 2 × 10/100 Mbps |
| DMZ Port | 1 × 10/100 Mbps |
| LAN Ports | 4 × 10/100 Mbps |
| Concurrent Sessions | 30,000 |
| Total Throughput (bidirectional) | 200 Mbps |
| VPN Tunnels Supported | 10–100 |
| Maximum PPTP Clients | 40 |
| Physical Size | 33 W × 23 D × 4.4 H cm |
| Operating Temperature | 0 °C – 45 °C |
| Storage Temperature | 0 °C – 60 °C |
| Humidity | 0 % – 90 % non‑condensing |
It supports up to 30,000 concurrent sessions.
