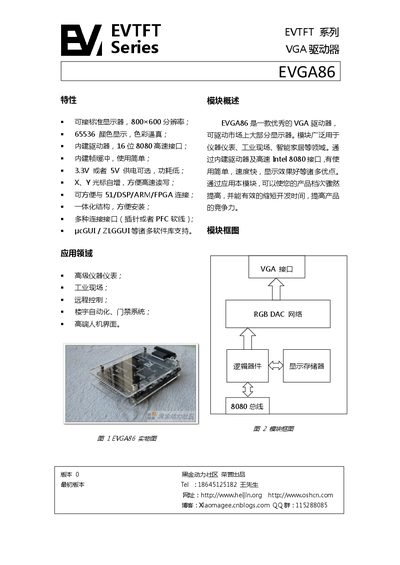

This document introduces the features and applications of the EVTFT Series VGA driver module produced by Heijin Power Community. It also provides interface definitions and power interface information. The module is capable of connecting to standard monitors, has built-in drivers, and low power consumption. It is suitable for advanced instruments, industrial sites, remote control, building automation, etc.
The EVGA86 is a VGA driver module that can drive most standard displays with a resolution of 800x600 and 65,536 colors. It features an integrated driver, a 16‑bit 8080 high‑speed interface, and supports both 3.3 V and 5 V power supplies. The module is used in advanced instrumentation, industrial sites, remote control, building automation, and high‑end human‑machine interfaces.
The datasheet details the 24‑pin connectors (15‑pin and J3), pin assignments, register map, timing parameters, electrical characteristics, and mechanical dimensions. Power input selection is made via three zero‑ohm resistors (R8‑R10). Register definitions include data, address, and control registers, as well as test modes for color verification. This manual is written in Chinese.
