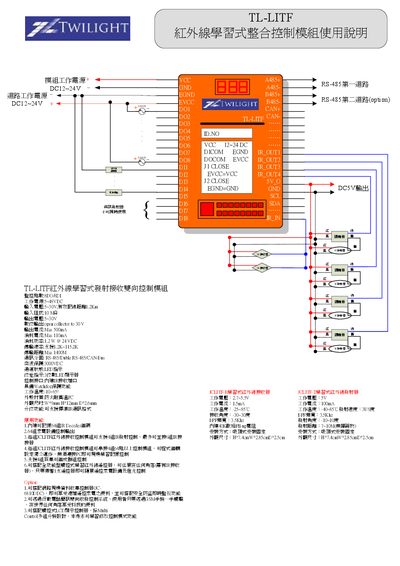

TL-LITF infrared learning integration control module user manual, introduces the characteristics of the module, such as the number of monitoring points, working voltage, input voltage, input impedance, output voltage, digital output, output current, power consumption, power consumption, transmission speed, transmission distance, communication interface, surge protection, channel status, address indication, control interface, working temperature, shell material, appearance size, subdivision function, application function, etc.
The TL-LITF infrared line learning integrated control modules provide flexible control of IR‑based devices. The manual describes power requirements, communication interfaces, watchdog protection, and optional add‑on functions such as GSM monitoring and LCD display control.
Technical details include operating voltage (3~48 VDC), output voltage (5~30 V), transmission rate (12 kHz‑1152 kHz), maximum transmission distance (up to 1400 m), and environmental specifications like fire‑resistant PC housing and operating temperature range. This manual is written in Chinese.
| Operating voltage | 3~48 VDC |
|---|---|
| Output voltage | 5~30 V |
| Input impedance | 10 MΩ |
| Maximum output current | 500 mA |
| Transmission rate | 12 kHz – 1152 kHz |
| Maximum transmission distance | 1400 m |
| Communication interface | RS‑485/Dual RS‑485, MCAN‑Bus |
| Watchdog protection | Enabled |
| Operating temperature | -10~60 °C |
| Enclosure material | Fire‑resistant high‑temperature PC |
| Dimensions | 9 mm × 12 mm × 2.6 mm |
The module operates from 3 V to 48 V DC.
It supports RS‑485, dual RS‑485, and MCAN‑Bus interfaces.
The module can transmit up to 1400 meters.
Yes, it includes a watchdog protection function.
