Bason T63 (6A) i12 LED Dimmer User Manual

This manual describes the use of T63 (6A) i12 LED dimmer, including installation, use, and maintenance.

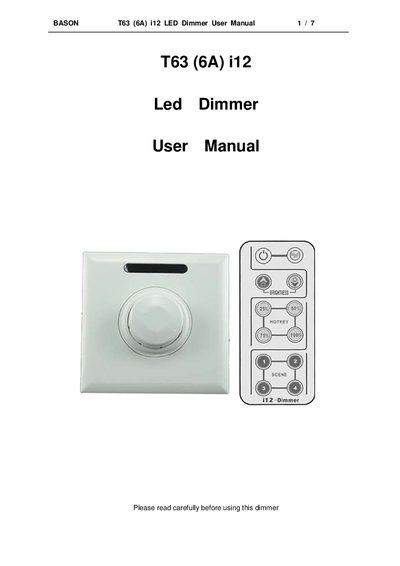

Bason T63 (6A) i12 LED Dimmer User Manual - cover page
Brand
Bason
Category
LED Driver Controller
Document type
User Manual
Language
English
Pages
7
File format
PDF
File size
566 KB
Published
18 February, 2012
Updated
30 September, 2023
MD5 checksum
290FDED1684C42573A789C50040A66CD
PDF
Bason T63 (6A) i12 LED Dimmer User Manual PDF

About this manual

The T63 (6A) i12 LED Dimmer is a smart RGB three‑color light controller that uses PWM digital dimming technology for commercial and home lighting. It supports manual adjustment via a knob and infrared remote control, offering 256 brightness levels and four preset brightness modes.

This manual covers safety guidelines, installation steps, wiring diagrams, remote‑controller functions, troubleshooting tips, and packaging details to help users set up and maintain the dimmer safely and effectively.

What's inside

  • Introduction
  • Technology specifications
  • Functions
  • Structure
  • Connection diagram
  • Remote controller keys
  • Failure analysis and solutions
  • Packaging
  • Safety instructions
  • After‑sale services

Specifications

TypeT63(6A) i12
Input voltageDC12V -24V
Output signalPWM
Max load current6A
Brightness level256
Dimmer dimensionL87*W87 mm
Remote dimensionL86*W40*H7.0 mm
Packaging dimensionL90*W60*H72 mm
Weight200 g

Frequently asked questions

How do I turn the LED dimmer on or off?

Press the on/off key on the remote controller; the dimmer will turn on or off.

How can I set a delayed turn‑off for the LED dimmer?

Press the Delay/off key; the dimmer will delay turn‑off for 30 seconds.

How many brightness levels does the dimmer support?

The dimmer provides 256 levels of brightness adjustment.
