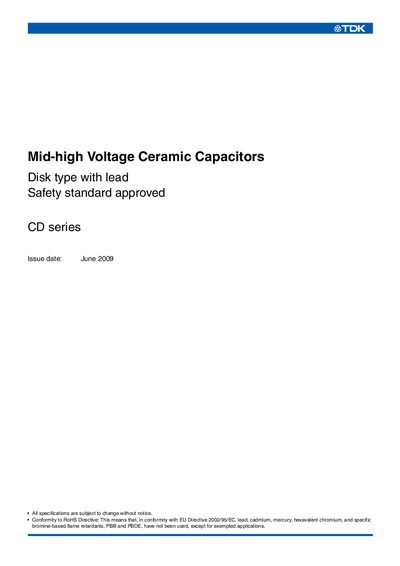

This document is an instruction manual for CD series ceramic capacitors, which introduces the features and characteristics of the product, including temperature range, rated voltage, rated capacitance, capacitance tolerance, product class, lead type, and safety standard.
The CD series are high‑voltage, disk‑type ceramic capacitors with reinforced insulation, designed for safety‑critical applications. They comply with European Class II safety standards (VDE, SEV, SEMKO, BS) and are RoHS‑compliant, containing no lead, cadmium, mercury or prohibited flame‑retardants.
The datasheet provides detailed product identification, markings, capacitance values, dimensions, lead‑type options and certification information, allowing engineers to select the appropriate part for their designs.
| Temperature range | -25 °C to +105 °C |
|---|---|
| Class | Class 2 High Dielectric |
| Rated voltage | 250 V AC |
| Capacitance tolerance | ±20 % (typical) |
| Lead type | Vertical kink (short or long) |
The CD series operates from –25 °C up to +105 °C.
They meet European Class II safety standards such as VDE, SEV, SEMKO and BS.
The rated voltage is 250 V AC.
