EATON/phoenixtec B series B-500, B-500U, B-700, B-700U is an advanced, ideal online interactive uninterruptible power system. Its analog sine wave can provide reliable and high-quality AC power for your precision equipment. Its application range is quite wide, from computer instrument equipment, communication system to industrial automatic control equipment. Its design architecture can provide stable power for load equipment with UPS internal boost, buck and voltage stabilizing devices when input voltage is too low or too high (in city power status).

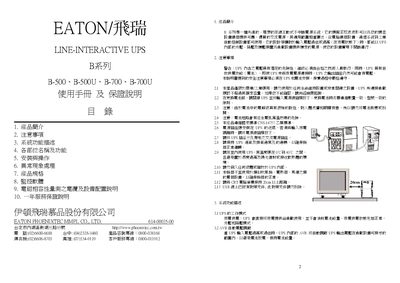

This manual introduces the Eaton B‑Series line‑interactive UPS, a high‑efficiency, sine‑wave output power solution for commercial and industrial equipment. It describes the product’s design, key features, and the environments where it can be safely used.
The document covers safety precautions, installation procedures, front‑panel functions, operating modes (utility, battery, and AVR), technical specifications, monitoring software, electromagnetic compatibility guidelines, and a one‑year service protection plan. It also provides troubleshooting tips for common fault conditions. This manual is written in Chinese.
| Capacity | 450VA/240W (B‑500/B‑500U), 650VA/360W (B‑700/B‑700U) |
|---|---|
| Input Voltage | 120 VAC (89‑145 V ±10 %) |
| Input Frequency | 60 Hz |
| Input Current | 4.5 A max (B‑500), 6.5 A max (B‑700) |
| Output Voltage | 120 VAC |
| Output Frequency | 60 Hz |
| Waveform | Sine wave |
| Recharge Time | 6 h to 90 % capacity |
| Transfer Time | 4‑8 ms |
| Weight | 44 kg |
| Operating Temperature | 0 °C to 40 °C |
| Noise Level | <40 dB |
Charge the UPS for at least 6 hours before first use.
A red LED means the UPS has a fault condition.
Turn off the UPS, disconnect the input power cable, and replace the battery with one of the same type and model.
The transfer time is generally between 4 and 8 milliseconds.
