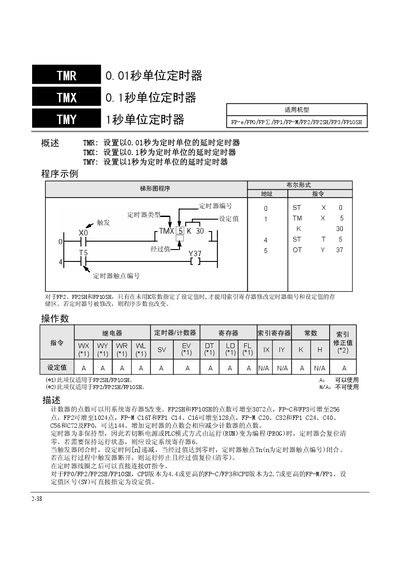

This document introduces three types of timers with different time units: TMR, TMX, and TMY. It provides program examples and instruction explanations. The document also mentions the setting value, trigger mode, and counter points of the timers.
The document provides an overview of the TMR, TMX, and TMY timing relays, describing their timing units (0.01 s, 0.1 s, and 1 s respectively) and how to configure them using constant K values. It includes programming examples, instruction formats, and notes on handling the relays in PLC RUN and PROG modes.
Detailed sections cover the calculation formulas for timer settings, programming precautions, the effect of timer contacts, and how to increase point counts for specific models (e.g., FP2SH, FP10SH). The manual also explains how to set and retain values in SV and EV zones, and provides sample ladder‑logic sequences for branching control. This manual is written in Japanese.
| TMX timing range | 0.1 s to 327.67 s, step 0.1 s |
|---|---|
| TMY timing range | 1 s to 327.67 s, step 1 s |
| Maximum point count for FP2SH and FP10SH | 3072 points |
| Maximum point count for FP‑C and FP3 | 256 points |
| Maximum point count for FP2 | 1024 points |
Yes, the point count for FP2SH and FP10SH can be increased up to 3072 points.
