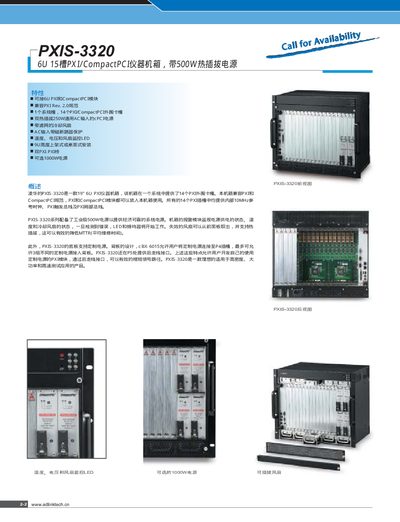

The PXIS-3320 is a 19" 6U PXI instrument chassis that provides 14 PXI peripheral card slots in one system. This chassis is compliant with the PXI and CompactPCI specifications, and both PXI and CompactPCI modules can be installed in it. All 14 PXI slots provide an internal 10MHz reference clock, PXI trigger bus and PXI local bus. The PXIS-3320 series is equipped with an industrial-grade 500W power supply to provide an economical and reliable system power supply. The alarm module in the chassis monitors the status of the power supply, temperature and cooling fan, and the LED and buzzer will start working once an error is detected. The failed fan can be removed from the front panel and supports hot-plugging, which can effectively reduce MTTR (mean time to repair).
The PXIS-3320 is a 6U, 15‑slot PXI/CompactPCI chassis that supports both PXI Rev.2.0 and CompactPCI standards. It includes a built‑in 500 W power supply (optionally up to 1000 W) with LED and buzzer status indicators, and offers internal 10 MHz reference, temperature, pressure, and LED monitoring. The chassis can be mounted in 9U rack‑mount or front‑panel configurations and supports hot‑swap modules to reduce MTTR.
Physical specifications include a size of 484 mm × 295 mm × 398 mm (L × W × H, not including handles) and a weight of 23 kg. It provides 15 slots (1 controller, 14 peripheral), a UL‑94V‑0 backplane, and environmental limits of 0 °C to 52 °C operating temperature and 20 °C to 70 °C storage temperature. EMC/EMI compliance is CE and FCC Class A. This manual is written in Chinese.
| Input Voltage | 100‑240 V AC ±10 % |
|---|---|
| DC Output +5 V | 2 A (typical), 25 A (minimum), 33 A (maximum) |
| DC Output +3.3 V | 0 A (typical), 18 A (minimum), 33 A (maximum) |
| Dimensions (L×W×H) | 484 mm × 295 mm × 398 mm (excluding handles) |
| Weight | 23 kg |
| Operating Temperature Range | 0 °C to 52 °C |
| Storage Temperature Range | 20 °C to 70 °C |
| Airflow | 241 CFM |
| Backplane Material | UL 94V‑0 |
| EMC/EMI Compliance | CE, FCC Class A |
The chassis measures 484 mm × 295 mm × 398 mm (length × width × height), not including the handles.
