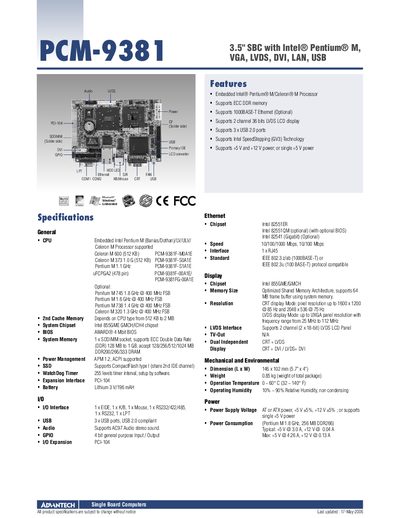

PCM-9381 is an embedded single board computer that uses Intel Pentium M/Celeron M processors, supports ECC DDR memory, and has multiple interfaces and expansion capabilities.
This manual describes the Advantech PCM-9381 3.5" Single Board Computer, its supported processors, memory options, and peripheral interfaces. It includes ordering information, packing list, and optional operating system images.
Key specifications include an Intel Pentium M or Celeron M CPU, ECC DDR memory up to 1 GB, up to three USB 2.0 ports, optional 1000BASE‑T Ethernet, and dual‑channel LVDS display support. Mechanical dimensions are 146 × 102 mm and the board operates from 0 °C to 60 °C.
| CPU | Embedded Intel Pentium M (Banias/Dothan) or Celeron M |
|---|---|
| Memory | 1x SODIMM socket, ECC DDR 128 MB‑1 GB |
| Ethernet | 10/100 Mbps, optional 1000BASE‑T Gigabit |
| USB Ports | 3 x USB 2.0 ports |
| Display | 2‑channel 36‑bit LVDS, up to UXGA resolution |
| Dimensions | 146 × 102 mm (5.7" × 4") |
| Power Consumption | Typical +5 V @ 3.0 A, 412 V @ 0.04 A |
The PCM-9381 supports Intel Pentium M (Banias/Dothan) and Celeron M processors, including various speed grades.
The board provides three USB 2.0 ports.
It has one SODIMM socket that supports ECC DDR memory ranging from 128 MB to 1 GB.
Standard 10/100 Mbps Ethernet is included, with an optional 1000BASE‑T Gigabit Ethernet controller.
