ORD9216 is Hasco's newest general purpose reed switch, available in an ampere turn range (pull in) of 10 to 40 and is broken down plus or minus 2 1/2. In other words, the most sensitive reed is 10/15AT while the least sensitive reed is 35/40AT. All reeds can be cut and bent to your specifications and even have SMT capabilities.
The ORD9216 is a general‑purpose reed switch offered by Sunstar. It is available with pull‑in (AT) ranges from 10 A to 50 A and provides a breakdown voltage of up to 200 VDC. The device can be customized to meet specific mechanical and electrical requirements, including SMT capability.

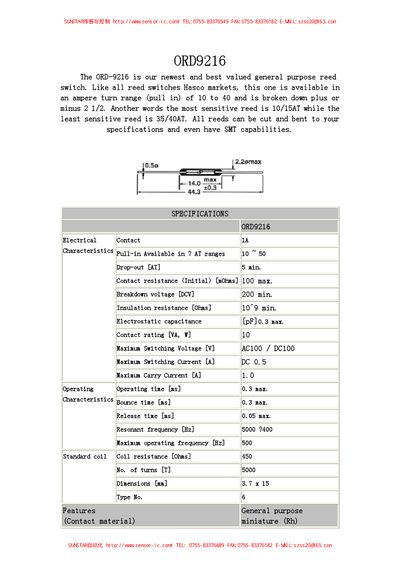

Key specifications include contact resistance, capacitance, switching voltage and current, as well as mechanical dimensions (3.7 mm × 15 mm). The datasheet lists a variety of product variants and provides contact ratings for both normally‑open and normally‑closed configurations.
| Pull‑in AT range | 10–50 A |
|---|---|
| Breakdown voltage (DCV) | 200 V min |
| Initial contact resistance | 100 mΩ max |
| Electrostatic capacitance | 0.3 pF max |
| Dimensions | 3.7 mm × 15 mm |
The ORD9216 is available with pull‑in ranges from 10 A to 50 A.
The minimum breakdown voltage is 200 VDC.
The switch measures 3.7 mm by 15 mm.
