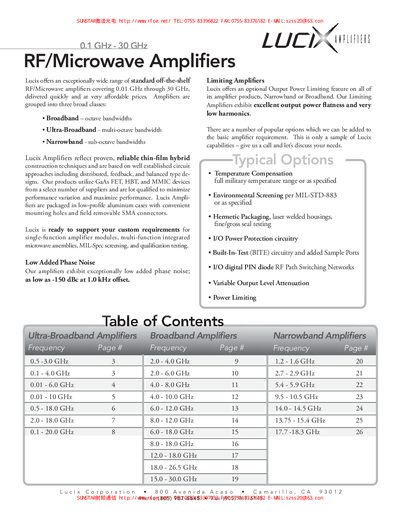

Lucix offers a wide range of standard off-the-shelf RF/Microwave amplifiers covering 0.01 GHz through 30 GHz, delivered quickly and at affordable prices. Amplifiers are grouped into three classes: Broadband - octave bandwidths, Ultra-Broadband - multi-octave bandwidth, and Narrowband - sub-octave bandwidths. Lucix Amplifiers reflect proven, reliable thin-film hybrid construction techniques and are based on well-established circuit approaches including distributed, feedback, and balanced type designs. The products utilize GaAs FET, HBT, and MMIC devices from select suppliers and are lot qualified to minimize performance variation and maximize performance. Lucix Amplifiers are packaged in low-profile aluminum cases with convenient mounting holes and field removable SMA connectors. Lucix is ready to support custom requirements for single-function amplifier modules, multi-function integrated microwave assemblies, MIL-Spec screening, and qualification testing.
Lucix provides a wide range of RF/Microwave amplifiers covering 0.01 GHz through 30 GHz. The amplifiers are grouped into three classes—Broadband (octave bandwidths), Ultra‑Broadband (multi‑octave) and Narrowband (sub‑octave)—and use GaAs FET, HBT and MMIC devices in low‑profile aluminum cases with field‑replaceable SMA connectors.
The catalog includes optional features such as temperature compensation, MIL‑STD‑883 environmental screening, hermetic packaging, I/O power‑protection circuitry, built‑in‑test (BITE), sample ports, digital PIN‑diode RF path switching, variable output‑level attenuation and power limiting. All models are specified for operation from 0 °C to 70 °C and meet military‑grade performance requirements.
| Gain (min) | 15 dB |
|---|---|
| Output Power P‑1dB (min) | 25 dBm |
| IP3 (typical) | 15 dBm |
| Noise Figure (max) | 0.50 dB |
All Lucix amplifiers are specified to operate from 0 °C to 70 °C.
