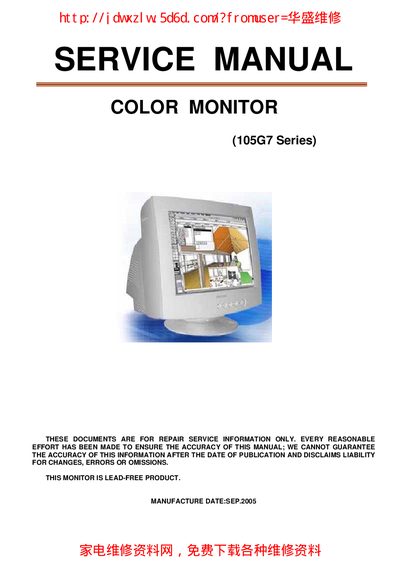

This is the service manual for the Huasheng 105G7 series monitor
This service manual provides detailed repair information for the RBZ 105G7 color monitor. It includes specifications, safety notices, adjustment procedures, wiring diagrams, and a parts list to assist technicians in diagnosing and fixing faults.
The document also covers power requirements, environmental limits, mechanical dimensions, and recommended service practices to ensure safe and reliable maintenance of the monitor.
| CRT type and size | 15" (13.8" viewable diagonal) |
|---|---|
| Dot pitch | 0.28 mm |
| Viewable image size | 35 cm (13.8" diagonal) |
| Display color capability | Unlimited Colors |
| Power source | Switching Mode Power Supply, AC 90‑264 VAC, 50/60 Hz |
| Operating temperature | 0 °C to +40 °C |
| Gross weight | 13.0 kg |
| Monitor dimensions (W×H×D) | 360 mm × 362 mm × 384 mm |
| Power consumption (ON mode) | < 70 W |
The monitor requires a switching‑mode power supply operating from AC 90 V to 264 V at 50 Hz or 60 Hz.
The monitor can operate between 0 °C and +40 °C.
