TLV1544EVM evaluation module is a TLV1544 10-bit ADC evaluation module, which can help users quickly evaluate the performance of TLV1544.

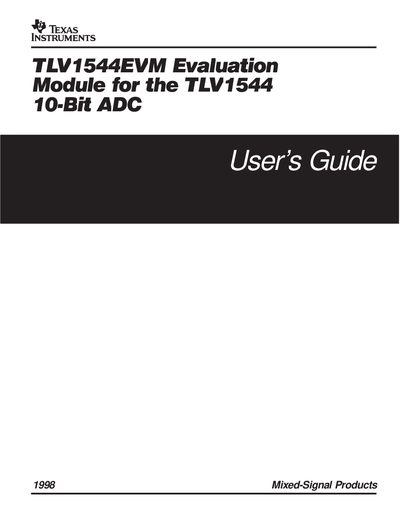

This guide provides an overview of the TLV1544EVM evaluation module for the TLV1544 10‑bit ADC, including its physical description, circuit details, and operating instructions. Safety notices and warranty information from Texas Instruments are also included.
An appendix offers grounding considerations for PCB design, recommending a single ground point, separate high‑current ground traces, and limits on ground‑trace resistance to maintain signal integrity.
| Resolution | 10 bits |
|---|---|
| Reference voltage | 4.1 V |
Texas Instruments states that its semiconductor products are not intended for life‑support or critical applications and that use in such applications is at the customer's risk.
