The document introduces a miniature ISO plug-in automotive relay with features such as low height, rich product series, high capacity switching capability, and plastic sealing. This relay is suitable for vehicle components such as headlights, electromagnetic clutches, radiator fans, blowers, fog lights, tail lights, heaters, defoggers, horns, and condenser fans.
The ACV11012 is a low‑profile miniature ISO plug‑in relay designed for automotive applications such as headlamps, electromagnetic clutches, radiator fans, and other vehicle accessories. It offers a compact plastic‑sealed design with options for built‑in diode or resistor protection.

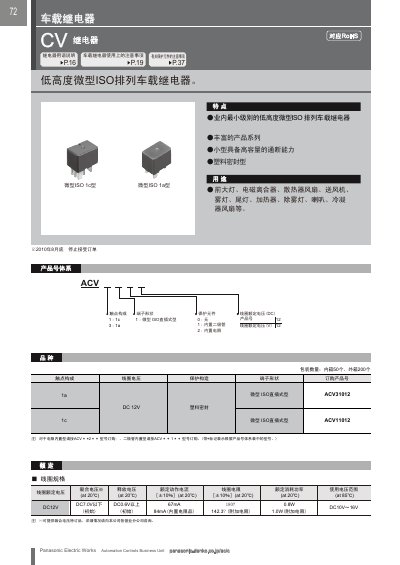

The datasheet provides detailed electrical and mechanical characteristics, including coil voltage, contact ratings, insulation resistance, temperature range, and test results for actuation and release performance. Dimensional drawings and wiring diagrams are also included for easy integration. This manual is written in Chinese.
| Contact material | Ag alloy (cadmium‑free) |
|---|---|
| Weight | ≈15 g |
It is used for front headlamps, electromagnetic clutches, radiator fans, blowers, fog lamps, tail lamps, heaters, defog lamps, horns, and condenser fans.
The relay can be ordered with no protection (0), an internal diode (1), or an internal resistor (2).
