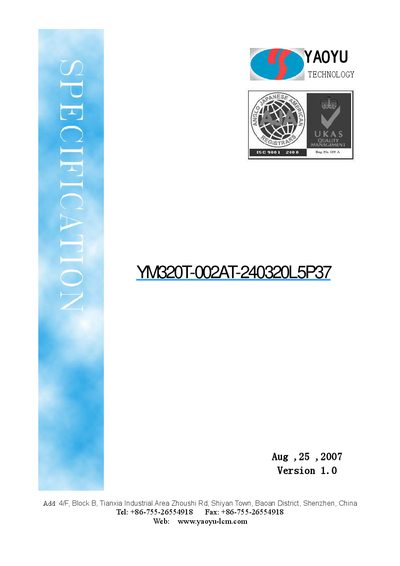

This is a specification sheet for YAOYU TECHNOLOGY YM320T-002AT-240320L5P37, which details the product's features and characteristics.
The YM320T-002AT-240320L5P37 is a 3.2" QVGA TFT‑LCD module with a 5‑parallel white LED backlight. It includes a touch panel, detailed pin‑out, and electrical characteristics for integration into devices. The manual lists the module’s physical dimensions, interface mode, driver IC, and operating temperature range.
In addition to the technical data, the document contains wiring diagrams, absolute maximum ratings, DC and AC characteristics, and extensive handling and storage precautions to prevent damage from mechanical shock, static electricity, or improper cleaning.
| LCD Type | 3.2" QVGA TFT‑LCD (Thin Film Transistor Liquid Crystal Display) |
|---|---|
| Viewing Direction | 9:00 O’ clock |
| Backlight Type | 5‑parallel‑White LED |
| Module Size (with TP) | 57.54 x 79.20 x 4.4 mm |
| Touch Panel Viewing Area | 51.20 x 71.20 mm |
| Touch Panel Active Area | 50.20 x 70.20 mm |
| LCD Active Area | 48.60 x 64.80 mm |
| Dot Number | 240(RGB) x 320 |
| Pixel Pitch | 0.2025(H) x 0.2025(V) mm |
| Operation Temperature | -19 ~ 79 °C |
| Storage Temperature | -30 ~ 80 °C |
| Driver IC | ILI9320 |
| Interface Mode | 8080 System 16‑bit Interface |
| Power Supply Voltage (VCC) | 2.40 ~ 3.30 V |
| Backlight Input Voltage | 3.0 ~ 3.4 V |
The module measures 57.54 mm × 79.20 mm × 4.4 mm (with the touch panel attached).
It uses a 5‑parallel white LED backlight that operates at an input voltage of 3.0 V to 3.4 V.
The module is driven by the ILI9320 IC.
