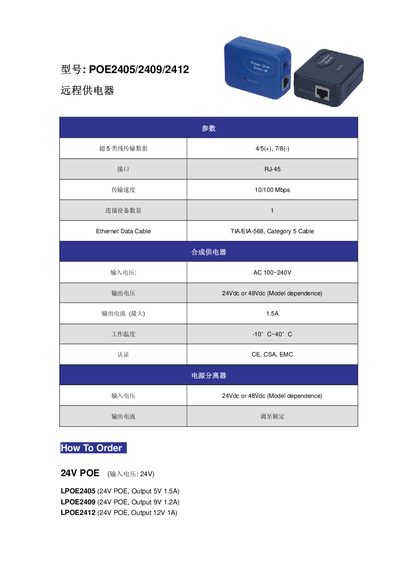

This document provides detailed information about the LPOE2405/2409/2412 remote power supply, including product parameters, connection methods, power supply methods, working environment, etc.
The POE2405/2409/2412 series provides long‑range Power over Ethernet solutions for appliances. Each module operates from AC 100‑240 V and can be powered by either 24 Vdc or 48 Vdc, depending on the model. Output voltages are 5 V (1.5 A), 9 V (1.2 A) or 12 V (1 A) as specified for each model.
The document includes ordering information for the three variants (LPOE2405, LPOE2409, LPOE2412) and lists compliance markings such as CE, CSA, and EMC. It also notes the operating temperature range of –10 °C to 40 °C.
| Input voltage (AC) | 100~240 V |
|---|---|
| Input voltage (DC, model dependent) | 24 Vdc or 48 Vdc |
| Output (LPOE2405) | 5 V 1.5 A |
| Output (LPOE2409) | 9 V 1.2 A |
| Output (LPOE2412) | 12 V 1 A |
| Operating temperature | -10 °C~40 °C |
LPOE2405 provides 5 V 1.5 A, LPOE2409 provides 9 V 1.2 A, and LPOE2412 provides 12 V 1 A.
