SCT-200 Single Cell Battery Capacity Tester is a battery capacity tester from Cellcorder. It can perform constant current discharge test and constant voltage charging test, and automatically record the test results.
The SCT-200 system provides programmable constant‑current discharge and constant‑voltage charge for one or two single cells. It includes a charge‑discharge unit with two 300 A loads (combined 600 A), a 2.00‑2.60 V/0‑120 A charger, a laptop‑based control and data logging unit, and software for remote monitoring and report generation.

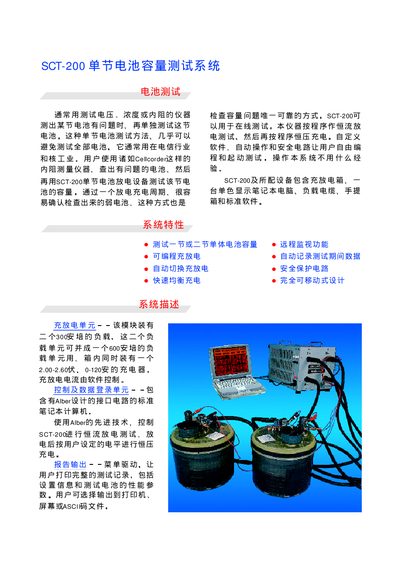

Users configure test parameters such as discharge current, voltage limits, and charge settings via a friendly screen, then start the test with the Run (F3) key. Test data are automatically saved and can be printed or exported as ASCII files. Optional accessories allow currents up to 1200 A and remote communication with a second computer. This manual is written in Chinese.
| Load Capacity per Unit | 300 A (two units, combinable to 600 A) |
|---|---|
| Charger Voltage Range | 2.00‑2.60 V |
| Charger Current Range | 0‑120 A |
| Discharge Current Range | 0‑600 A per cell |
| Charge Voltage Range | 2.09‑1.75 V DC |
| Physical Dimensions (load module) | Height 14", Width 13", Depth 23.5" |
Press the Run key (F3) to begin the test; data are stored automatically during the run.
Yes, an optional high‑current load accessory enables testing up to 1200 A.
Both the local and remote computers must have the remote communication software installed.
Reports can be printed, displayed on screen, or saved as an ASCII file.
