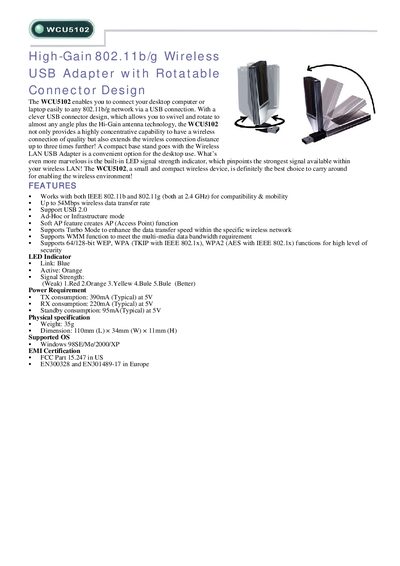

The WCU5102 is an 802.11b/g wireless USB adapter with a rotatable connector design that allows it to swivel and rotate to almost any angle. It also features Hi-Gain antenna technology, a built-in LED signal strength indicator, a compact base stand, and supports USB 2.0.
The WCUS5102 is a compact USB wireless adapter that connects desktop computers or laptops to 802.11b/g networks. It features a swivel‑and‑rotate USB connector and a high‑gain antenna for extended range and signal strength indication via LED.
This manual describes the adapter’s features, technical specifications, power consumption, physical dimensions, supported operating systems, and regulatory approvals. It also includes guidance on installation and usage modes such as Ad‑Hoc, Infrastructure, and Soft AP.
| Maximum data rate | 54 Mbps |
|---|---|
| TX power consumption | 390 mA at 5 V (typical) |
| RX power consumption | 220 mA at 5 V (typical) |
| Standby power consumption | 95 mA at 5 V (typical) |
| Weight | 35 g |
| Dimensions | 110 mm × 34 mm × 11 mm |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -20 °C to 70 °C |
| Operating humidity | up to 90 % non‑condensing |
It supports Windows 98SE, Windows Me, Windows 2000, and Windows XP.
The adapter provides up to 54 Mbps wireless data transfer rate.
In transmit mode it draws about 390 mA at 5 V (typical).
