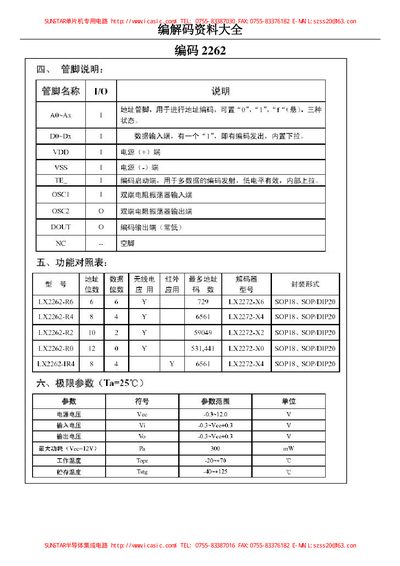

This manual provides detailed information on the SUNSTAR LX2262 microcontroller circuit, including pin functions, code structure, and typical application schematics. It contains block diagrams, pin configuration tables, and electrical specifications needed for design and integration.
The document also lists model variations (LX2262‑RG6, LX2262‑R4, etc.) and offers guidance on encoding start pins, data input handling, and power requirements, making it useful for engineers developing products with SUNSTAR microcontrollers. This manual is written in Chinese.
| Supply voltage | 3.0‑12.5 V |
|---|---|
| Maximum power consumption | 300 mW |
| Operating temperature | -20 °C to +70 °C |
DOUT is the encoding output pin and is normally low.
TE_T is the encoding start pin, active low with an internal pull‑up.
