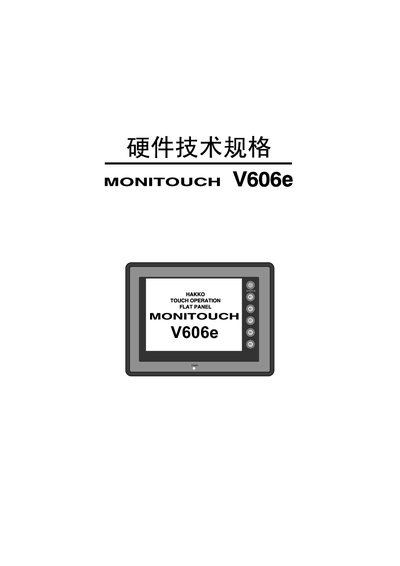

Hakko MONITOUCH V606e User Manual

About this manual

This manual covers the safe use, installation, and operation of the MONITOUCH V606e. It includes safety warnings, handling precautions, and detailed installation procedures to ensure reliable performance.

The document also lists the technical specifications, hardware dimensions, component functions, and connection methods for power, serial interfaces, and peripheral devices. Battery handling, DIP switch settings, and maintenance guidelines are provided for proper service and troubleshooting. This manual is written in Chinese.

What's inside

• Safety Instructions
• Installation Procedure
• Technical Specifications
• Hardware Dimensions
• Component Functions
• Serial Connection Interfaces
• Power Cable Connection
• Lithium Battery Handling
• DIP Switch Settings
• Maintenance and Warranty

Frequently asked questions

What safety precautions should be taken when handling the MONITOUCH V606e?

Do not operate the emergency switch or other input functions, avoid touching terminals when power is on, and ensure proper grounding to prevent electric shock or fire.

How should the lithium battery in the MONITOUCH V606e be handled?

The lithium battery must not be removed, charged, deformed, short‑circuited, or exposed to fire; improper handling can cause explosion or fire.

What torque is recommended for tightening the power connector screws?

Use a torque of 0.5 N·m when tightening the power connector screws to avoid loosening or over‑tightening.
