NGT temperature switch 10(round thin type), including 10N, 10CN, 10S three types, rated voltage AC125V / 15A, AC250V / 10A, working temperature range 0 ° C ~ 200 ° C, temperature tolerance ± 5 ° C, maximum ambient temperature 200 ° C, terminal resistance 30mΩ (initial value) , insulation resistance DC500V, 1000MΩ, opening and closing endurance times 10,000 times (standard specification).

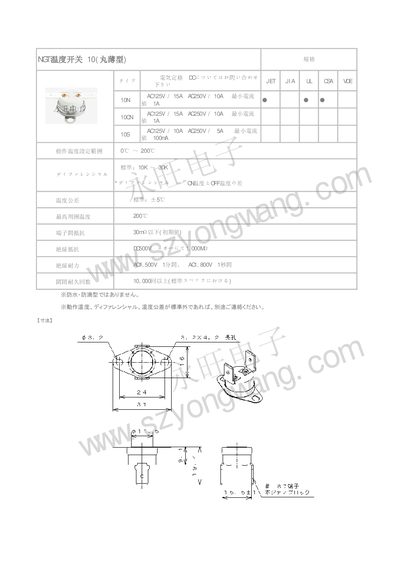

The NGT 10 temperature switch is a compact, round‑type device designed for industrial temperature monitoring. This manual provides the electrical ratings, operating temperature limits, differential settings, and mechanical specifications needed for proper installation and use.
Key information includes voltage and current ratings, minimum load current, temperature tolerance, contact resistance, insulation resistance, and mechanical life expectancy. Dimensions and mounting details are also listed, along with notes on waterproofing and special configuration requests. This manual is written in Japanese.
| Voltage / Current Rating | 125 V / 15 A, 250 V / 10 A |
|---|---|
| Minimum Load Current (alternative) | 100 mA |
| Operating Temperature Range | 0 °C – 200 °C |
| Differential Range (standard) | 10 K – 30 K |
| Temperature Tolerance (standard) | ±5 °C |
| Maximum Ambient Temperature | 200 °C |
| Contact Resistance (initial) | ≤30 nΩ |
| Insulation Resistance | DC 500 V |
| Withstand Voltage | 500 V DC 1 min, 1.8 kV AC 1 s |
| Mechanical Life | >10 000 cycles |
| Dimensions | ≈3.2 × 8.3 × 4 mm |
The switch operates from 0 °C up to 200 °C.
It is rated for 125 V / 15 A and 250 V / 10 A.
The mechanical life is rated for more than 10 000 opening/closing cycles.
