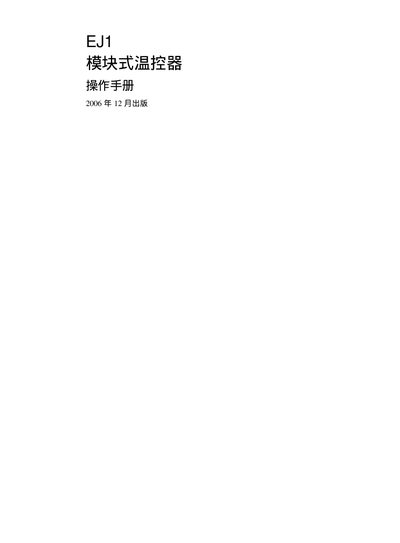

This document is the operation manual for the EJ1 modular temperature controller, providing information on its features, performance, and usage.
This manual describes the EJ1 module thermostat, covering its functions, performance data and proper usage. It includes safety precautions, handling instructions and warranty information to ensure reliable operation.
The document also provides detailed installation and wiring instructions, recommended torque values, allowable temperature and humidity ranges, and communication parameters for system integration. This manual is written in Chinese.
| Operating temperature range | -10 °C to 55 °C |
|---|---|
| Operating humidity range | 23 % to 85 % |
| Terminal screw torque | 0.40 N·m to 0.56 N·m |
| Recommended wire gauge | AWG22 to AWG14 (0.326 mm² to 2.081 mm²) |
It can operate from –10 °C up to 55 °C.
The acceptable humidity range is 23 % to 85 %.
Apply a torque of 0.40 N·m to 0.56 N·m when tightening the terminal screws.
Use wires between AWG22 and AWG14 (approximately 0.326 mm² to 2.081 mm²).
