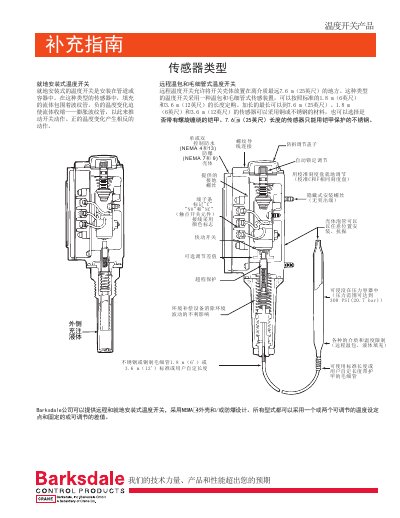

Barksdale temperature switches are available in remote bulb and capillary temperature switch and in-situ temperature switch with NEMA 4 enclosure and/or explosion proof design. All types are available with one or two adjustable temperature setpoints and fixed or adjustable differential.
This manual provides detailed information on Barksdale's temperature switch products, including on‑site and remote types, environmental temperature compensation, and selectable materials such as copper or stainless steel. It describes the operating principles, pressure rating, and temperature range of the switches.
The document also contains installation guidelines, electrical ratings, hysteresis data, hermetic switch options, conversion tables, and a troubleshooting and maintenance section to help users ensure safe and reliable operation in hazardous or standard environments. This manual is written in Chinese.
| Maximum pressure rating | 300 psi (20.7 bar) |
|---|---|
| Operating temperature range | -65 °F to +165 °F |
The switches are rated for a maximum pressure of 300 psi (20.7 bar).
They operate from –65 °F up to +165 °F.
