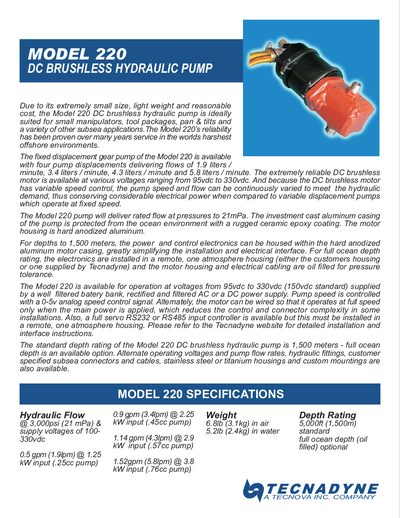

The Model 220 DC brushless hydraulic pump is a compact, lightweight pump designed for small manipulators, tool packages, pan & tilts and other subsea applications. Its reliability has been proven in harsh offshore environments.
The pump offers four fixed‑displacement flow rates, operates at voltages from 95 VDC to 330 VDC, and can be controlled with a 0‑5 V analog signal. Standard depth rating is 1,500 m with an optional full‑ocean‑depth configuration, and the motor and electronics can be housed in oil‑filled or remote pressure‑tolerant enclosures.
| Flow rates | 1.9, 3.4, 4.3, 5.8 liters/min |
|---|---|
| Maximum pressure | 27 MPa (3,000 psi) |
| Supply voltage range | 95 VDC – 330 VDC (150 VDC standard) |
| Speed control signal | 0‑5 V analog |
It can operate from 95 VDC up to 330 VDC, with 150 VDC as the typical standard voltage.
Four flow rates are offered: 1.9, 3.4, 4.3 and 5.8 liters per minute.
Pump speed is varied with a 0‑5 V analog speed control signal.
