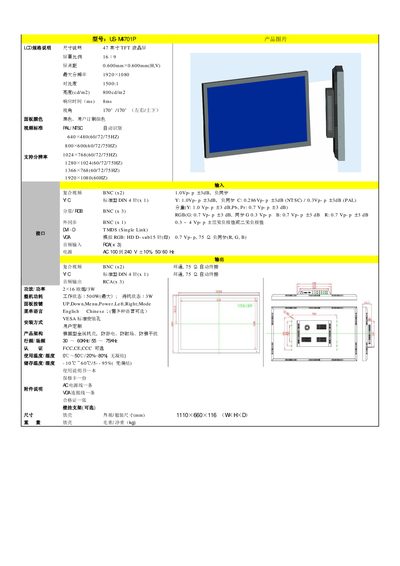

This document is about the specifications of the US-M4701P model LCD screen. The LCD screen has a size of 47 inches, a screen ratio of 16:9, a maximum resolution of 1920×1080, a contrast ratio of 1500:1, a brightness of 800cd/m2, a response time of 8ms, and a viewing angle of 170°/170°. The LCD screen supports multiple resolutions. The input interfaces include composite video, Y/C standard DIN 4 pin, component/RGB BNC, external sync, DVI-D TMDS, and VGA analog RGB. The output interfaces include composite video and Y/C standard DIN 4 pin. The product features a sturdy metal casing with anti-static, anti-magnetic, and anti-interference capabilities.
This manual provides the specifications, environmental limits, power requirements and connector details for the MI701P 47‑inch TFT LCD screen. It also includes installation guidelines, accessory information and warranty terms.
The document is written in Chinese with some English labels and covers topics such as panel size, resolution, brightness, contrast, viewing angles, supported video formats and power consumption.
| Screen size | 47 inches |
|---|---|
| Aspect ratio | 16:9 |
| Pixel pitch | 0.600 mm × 0.600 mm |
| Maximum resolution | 1920 × 1080 |
| Contrast ratio | 1300:1 |
| Brightness | 800 cd/m² |
| Viewing angle | 170° horizontal / 170° vertical |
| Maximum power consumption | 300 W |
The screen measures 47 inches diagonally.
It supports a maximum resolution of 1920 × 1080 pixels.
