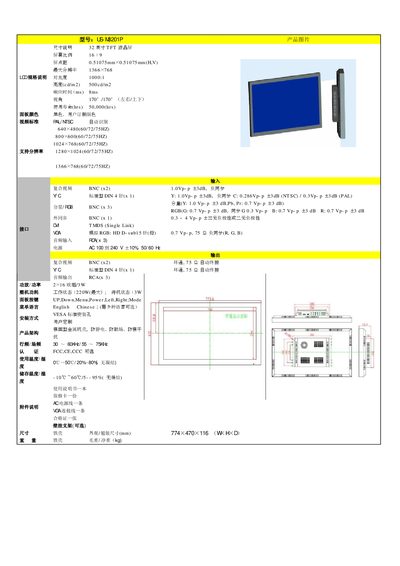

US-M3201P LCD monitor, 32 inches, resolution 1366*768, supports PAL/NTSC signals, supports multiple video inputs, power consumption 220W.
The UM5201P is a 32‑inch TFT LCD panel with a 16:9 aspect ratio and a native resolution of 1366 × 768 pixels. It offers a contrast ratio of 1000:1, brightness of 500 cd/m², and a response time of 8 ms. The panel supports multiple video input standards (NTSC, PAL, etc.) and provides several BNC, DIN, and HDMI‑type connectors.
The screen operates from an AC 100‑240 V source, drawing up to 220 W at full power and 3 W in standby. It is rated for a lifespan of 30 000 hours and can function within a temperature range of –10 °C to 60 °C with relative humidity up to 95 %. Physical dimensions are 774 mm × 470 mm × 116 mm, and the unit includes mounting brackets and accessories. This manual is written in Chinese.
| Screen Size | 32 inches |
|---|---|
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.5107 mm |
| Resolution | 1366 × 768 |
| Contrast Ratio | 1000:1 |
| Brightness | 500 cd/m² |
| Response Time | 8 ms |
| Viewing Angle | 170° horizontal / 170° vertical |
| Lifespan | 30,000 hours |
| Maximum Power Consumption | 220 W |
| Standby Power Consumption | 3 W |
| AC Input Voltage | 100‑240 V |
| Operating Temperature | -10 °C to 60 °C |
| Dimensions (W×H×D) | 774 mm × 470 mm × 116 mm |
The screen supports a maximum resolution of 1366 × 768 pixels.
It draws up to 220 W when operating at full power.
The unit can operate from –10 °C to 60 °C.
