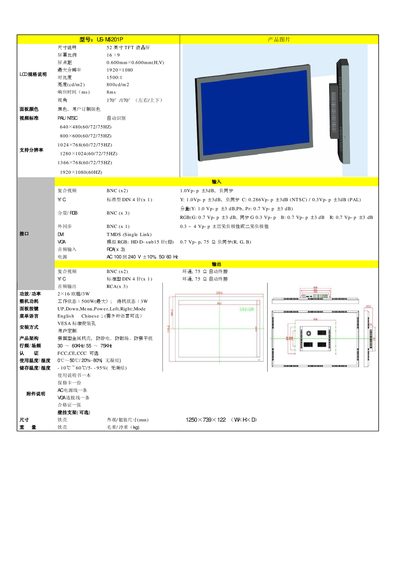

This document introduces the features and characteristics of the US-M5201P 52-inch TFT LCD screen product, including screen size, screen ratio, resolution, contrast ratio, brightness, response time, etc.
The NM201P is a 52‑inch TFT liquid‑crystal display with a 16:9 aspect ratio and a pixel pitch of 0.600 mm (H×V). It supports a maximum resolution of 1920×1080, a contrast ratio of 1500:1, brightness of 800 cd/m², and a response time of 8 ms, offering a wide 170° viewing angle.
The screen provides multiple video inputs including composite video (BNC ×2), YC (DIN 4‑pin), component, RGB, and VGA, as well as audio inputs and outputs. Power consumption peaks at 500 W with a standby draw of about 3 W. It operates in temperatures from 0 °C to 50 °C and includes VESA‑standard mounting holes and optional wall‑mount brackets. This manual is written in Chinese.
| Screen size | 52 inches |
|---|---|
| Aspect ratio | 16:9 |
| Pixel pitch | 0.600 mm × 0.600 mm (H×V) |
| Maximum resolution | 1920×1080 |
| Contrast ratio | 1500:1 |
| Brightness | 800 cd/m² |
| Response time | 8 ms |
| Maximum power consumption | 500 W |
| Operating temperature range | 0 °C to 50 °C |
The screen supports a maximum resolution of 1920×1080.
The display brightness is 800 cd/m².
Maximum power consumption is 500 W, with a standby consumption of about 3 W.
