MegaBit TE4571E User Manual (Detailed)

This is the user manual of TE4571E, which mainly introduces the setting methods of this product

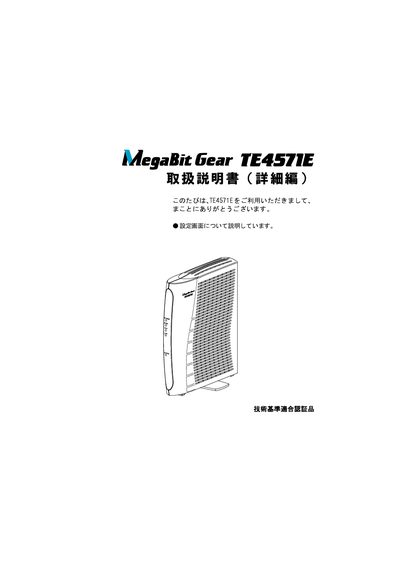

MegaBit TE4571E User Manual (Detailed) - cover page
Brand
MegaBit
Category
Router
Document type
User Manual
Language
Japanese
Pages
66
File format
PDF
File size
1.4 MB
Published
10 February, 2012
Updated
30 September, 2023
MD5 checksum
FB67D3C96B18E05CA7640618C90B8868
PDF
MegaBit TE4571E User Manual (Detailed) PDF

About this manual

This manual provides step‑by‑step instructions for configuring the MegaBit TE4571E. It covers basic network settings, NAT address translation, IP filtering, DHCP server options, and advanced features such as UPnP, VPN, and PPP passthrough.

The document also includes maintenance procedures like password changes, time setting, backup and restore of configurations, system reboot, and firmware upgrades. Each section contains screen‑shot style descriptions of the menu options and recommended default values. This manual is written in Japanese.

What's inside

  • Basic Settings
  • NAT Address Translation
  • IP Filter Settings
  • Device Information
  • Security Log
  • UPnP Settings
  • Backup and Restore
  • System Reboot
  • Firmware Upgrade
  • VPN and PPP Settings

Specifications

Maximum DHCP addresses50
Default DHCP start IP192.168.0.2

Frequently asked questions

How many DHCP addresses can be allocated?

The device can allocate up to 50 DHCP addresses.

How do I enable UPnP?

Select "使用する" (Enable) for UPnP in the settings to allow PC applications to use UPnP.
