The 3031 is a surface-mounted piezoresistive silicon accelerometer. It features small size, impact resistance, durability, built-in damping and wideband.
The 3031 is a surface‑mount piezoresistive silicon accelerometer designed for compact, sealed, lightweight, and low‑cost applications. It features built‑in damping, over‑range protection, and a rugged construction suitable for vibration and shock monitoring.

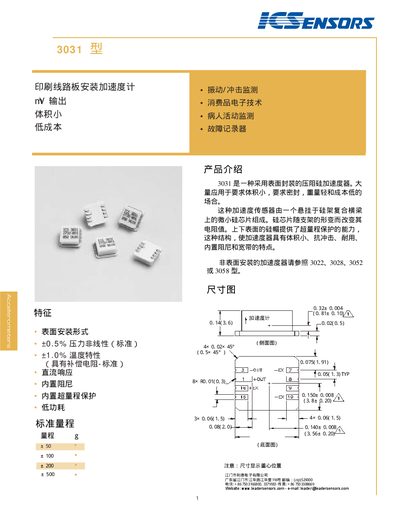

The guide provides dimensions, mounting instructions, wiring details, and key performance parameters such as supply voltage, temperature range, frequency response, and sensitivity. It also includes ordering options and recommended soldering practices. This manual is written in Chinese.
| Supply Voltage | 5 VDC |
|---|---|
| Operating Temperature Range | -40 °C to +125 °C |
| Frequency Response (minimum) | 0‑1000 Hz (±50 g) |
| Measurement Range | ±50 g, ±100 g, ±200 g, ±500 g |
It requires a 5 VDC supply.
The device operates from –40 °C to +125 °C.
The minimum frequency response is 0 Hz to 1000 Hz for the ±50 g range.
