The 3041 series of surface mount accelerometers are solid-state structures with ceramic sealed housings that are widely used in applications where small size, sealed, light weight and low cost are required. This accelerometer consists of a tiny silicon chip suspended on a silicon frame composite beam. The silicon chip changes its resistance value as the bracket deforms. The silicon caps on the top and bottom provide over-range protection. This structure makes the accelerometer have the characteristics of small size, shock resistance, durability, built-in damping and wide bandwidth.
The 3041 is a solid‑state, ceramic‑sealed, surface‑mount accelerometer designed for compact, lightweight, low‑cost applications. It features built‑in overload protection, damping, and a low‑power DC response.

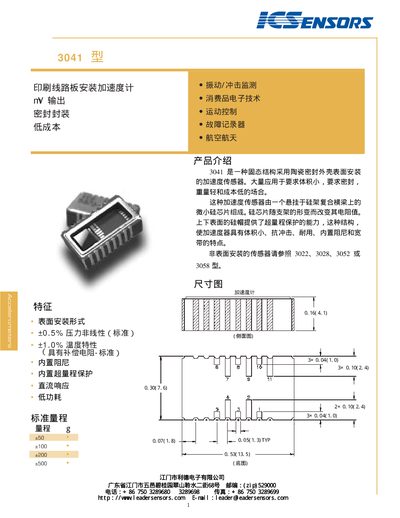

The manual includes dimensions, performance parameters such as supply voltage, sensitivity ranges, zero‑output, and operating temperature, as well as wiring diagrams and ordering information for the 3041 series. This manual is written in Chinese.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Zero Output | -25 to +25 mV |
| Sensitivity (0‑50 g range) | 0.60 – 1.00 mV/g |
It can operate from –40 °C up to +85 °C.
