This document describes the features and characteristics of the accelerometer model 3041, including vibration/impact monitoring, consumer electronics technology, motion control, fault recorders, aerospace, etc. This accelerometer has mV output, sealed packaging, low cost, surface mount form, ±0.5% pressure nonlinearity (standard), ±1.0% temperature characteristic (with compensating resistor - standard), built-in damping, built-in over-range protection, DC response, and low power consumption. The standard ranges are ±50, ±100, ±200, and ±500 g.
The 3041 is a solid‑state, surface‑mount accelerometer sealed in a ceramic package. It offers a small size, low cost, built‑in damping, and overload protection, making it suitable for consumer electronics, motion control, and aerospace applications.

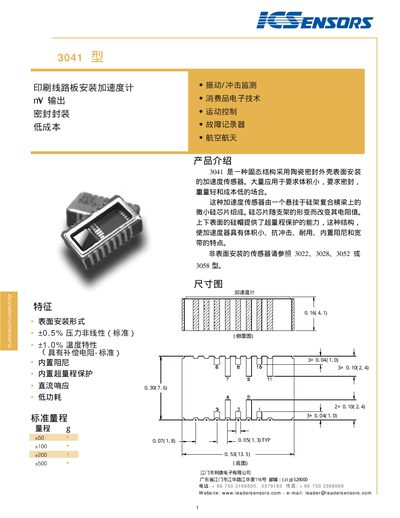

This guide covers PCB mounting steps, wiring connections, and detailed performance data such as power requirements, temperature ranges, sensitivity, and zero‑offset output. It also includes dimension drawings and ordering information for the 3041‑050 variant. This manual is written in Chinese.
| Power supply voltage | 5.0 V to 10.0 V |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +125 °C |
| Sensitivity (±50 g range) | 0.60 mV/g to 1.00 mV/g |
It operates from a 5.0 V to 10.0 V supply.
The device works from –40 °C up to +85 °C.
Standard ranges are ±50 g, ±100 g, ±200 g, and ±500 g.
