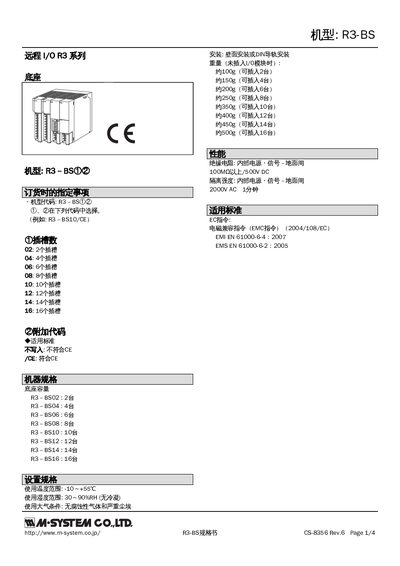

This document introduces the features, specifications, performance, and applicable standards of the R3-BS series base.
The guide provides step‑by‑step installation procedures for the R3‑BS series, including mounting orientation, required clearances and environmental considerations. It also lists the dimensions and weight‑capacity limits for each model variant (02, 04, 06, 08, 10, 12, 14, 16).
Compliance information such as EMC standards (EN 61000‑6‑4:2007, EN 61000‑6‑2:2005) and temperature/humidity operating ranges are included, along with warnings about prohibited installation locations near heat‑generating equipment. This manual is written in Chinese.
| Weight capacity per unit (2 units) | 100 g |
|---|---|
| Weight capacity per unit (4 units) | 150 g |
| Weight capacity per unit (6 units) | 200 g |
| Weight capacity per unit (8 units) | 250 g |
| Weight capacity per unit (10 units) | 350 g |
| Weight capacity per unit (12 units) | 400 g |
| Weight capacity per unit (14 units) | 450 g |
| Weight capacity per unit (16 units) | 500 g |
| Operating temperature range | -10 °C to +55 °C |
| Operating humidity range | 30 % to 90 % RH |
| EMC standard EN 61000‑6‑4 | 2007 |
| EMC standard EN 61000‑6‑2 | 2005 |
A R3‑BS02 unit can support up to 100 g when two units are used together.
No, the device must not be installed directly above heaters, transformers, or other high‑heat machines.
Sufficient vertical clearance must be left above and below the device to allow airflow and prevent overheating.
The R3‑BS complies with EMC standards EN 61000‑6‑4 (2007) and EN 61000‑6‑2 (2005).
