This is a grinder balancing instrument, which can be used for vibration monitoring, new dynamic balancing and continued static balancing of the grinder. The instrument adopts a digital display, which intuitively displays the vibration value and phase angle of the grinder.

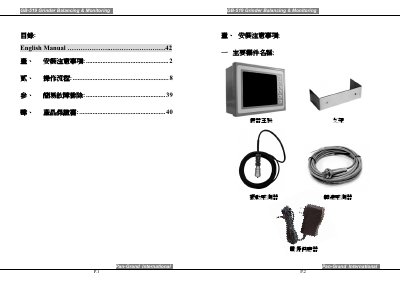

This user manual covers the GB-519 grinder balancing and monitoring system, describing the main components, installation steps for the power supply, speed and vibration sensors, and wiring diagrams. It also explains how to operate the device, set tolerance limits, switch languages, and perform dynamic balancing functions.
Additional sections include safety precautions, a detailed specifications table, troubleshooting guidance, and the product certificate with warranty information. This manual is written in Chinese.
| Speed range | 400~20000 rpm |
|---|---|
| Power supply | 100~240 V AC 50/60Hz |
| Dimensions | 177 x 132 x 85 mm |
Press the F6 key twice to toggle between Chinese and English.
