Xinzhi Long XZL024 Logic Analyzer User Manual

XZL024 oscilloscope logic analyzer is a high-performance and cost-effective circuit analysis and debugging tool based on PC. It can realize oscilloscope, logic analyzer and many other functions.

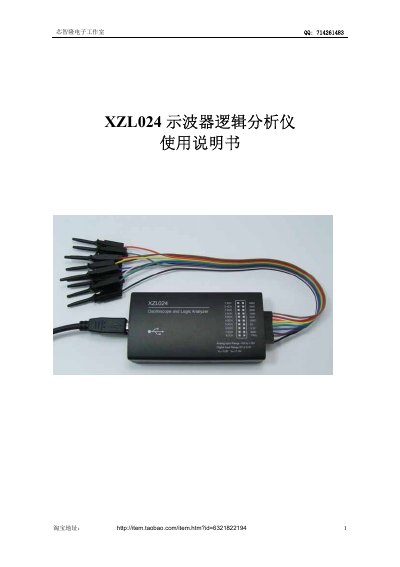

Xinzhi Long XZL024 Logic Analyzer User Manual - cover page
Brand
XZL024
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
20
File format
PDF
File size
450 KB
Published
08 February, 2012
Updated
30 September, 2023
MD5 checksum
9AE3AC2343909327485B129BFC0E55EB
PDF
Xinzhi Long XZL024 Logic Analyzer User Manual PDF

About this manual

The XZL024 is a PC‑based logic analyzer and oscilloscope that works with the USBee AX Pro software suite. The manual describes the device’s hardware parameters, required computer specifications, and how to connect the unit to a target board.

It also covers software installation, registration of the USBee Suite, quick‑start procedures for both the oscilloscope and logic analyzer functions, and details the RS232/RS485/RS422/CAN adapter board connections. This manual is written in Chinese.

What's inside

  • Introduction
  • Computer System Requirements
  • Hardware Parameters
  • Software Installation
  • Oscilloscope
  • Logic Analyzer USBee Suite
  • RS232/RS485/RS422/CAN Adapter Board
  • Quick Start

Specifications

Maximum sampling speed16 Msps
Analog bandwidth3 MHz
Input voltage range-10 V ~ +10 V
Analog sensitivity78 mV
Storage depth>1 M samples

Frequently asked questions

How do you register the USBee Suite software?

Open USBee Suite, choose “Register USBee Suite Pro” from the Setup menu, enter the displayed ID number, and input the generated registration code.
