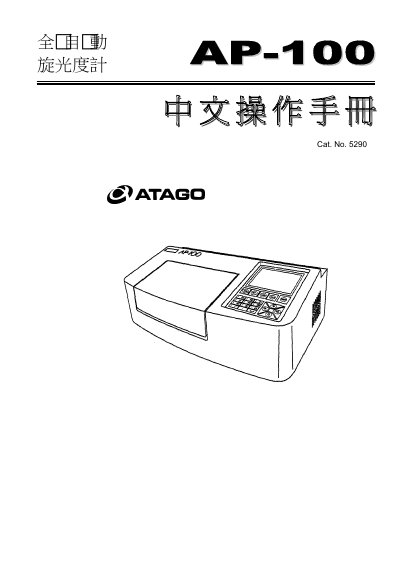

The ATAGO AP-100 is a fully automatic polarimeter Cat.No.5290 A AP P-1 10000 for measuring optical rotation. It features high accuracy, simple operation, and comes with a digital printer.
This manual begins with safety precautions, including warning and caution symbols, proper handling of the optical components, and restrictions on disassembly or repair. It then covers unpacking, installation, connection of the AC power cable and optional DP‑63 printer, and basic power‑on procedures.
Subsequent sections describe how to set date and time, select measurement modes, prepare samples, perform calibrations, and use the self‑diagnostic functions. The document also details environmental limits, warranty information, and authorized service contacts for the ATAGO AP‑100. This manual is written in Chinese.
| Input voltage | AC100‑240V |
|---|---|
| Operating temperature range | 5 °C – 40 °C |
| Maximum relative humidity | 80 % at 31 °C, 50 % at 40 °C |
The manual lists warning and caution symbols and advises not to disassemble, repair, or modify the instrument, to avoid water contact, and to wear appropriate protective equipment.
Use the supplied RX‑S000a AC power cable and ensure correct polarity; using other cables may cause fire or smoke.
Only ATAGO‑authorized service personnel or technicians who have completed ATAGO’s training may perform repairs.
