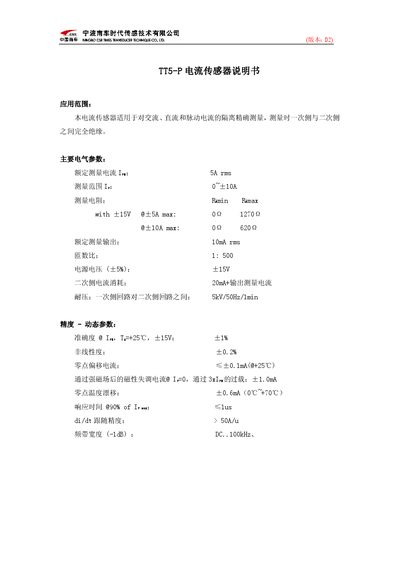

This document describes the application scope, main electrical parameters, features, and general parameters of the TT5-P current sensor. The sensor is suitable for accurate measurement of AC, DC, and pulsating currents with complete isolation, high accuracy, and zero-flux Hall effect principle.
The TT5-P current sensor is designed for isolated, precise measurement of AC, DC and pulsed currents. The primary and secondary circuits are fully insulated, ensuring safe operation across a wide range of applications.
The document lists key electrical parameters such as supply voltage, accuracy, bandwidth, temperature limits and safety standards (UL, EN50178). It also includes connection methods and mechanical dimensions for proper integration into measurement systems. This manual is written in Chinese.
| Supply voltage (max current 5 A) | 15 V @ 5 A |
|---|---|
| Bandwidth (‑1 dB) | 100 kHz |
| Operating temperature range | -25 °C to +85 °C |
| Withstand voltage | 5 kV / 50 Hz / 1 min |
| Secondary output current | 20 mA |
It is rated for operation from –25 °C up to +85 °C.
