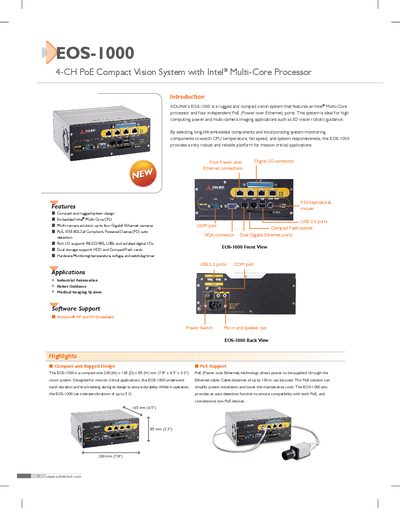

EOS-1000 is a rugged and compact vision system that features an Intel® Multi-Core processor and four independent PoE (Power over Ethernet) ports. This system is ideal for high computing power and multi-camera imaging applications such as 3D vision robotic guidance. By selecting long-life embedded components and incorporating system monitoring components to watch CPU temperature, fan speed, and system responsiveness, the EOS-1000 provides a very robust and reliable platform for mission critical applications.
The ADLINK EOS-1000 is a compact, rugged vision system featuring an Intel® Multi‑Core CPU, supporting up to four Gigabit Ethernet cameras via PoE ports, and offering rich I/O such as RS‑232/485, USB, and isolated digital inputs/outputs.
It provides dual data storage with a SATA HDD and a CompactFlash socket, hot‑swappable filter design for easy maintenance, operates from 0 °C to 55 °C with a 50 W power consumption, and is targeted at industrial automation, robot guidance, and medical imaging applications.
| CPU | Intel® Core™2 Duo P8400, 2.26 GHz |
|---|---|
| System Memory | Up to 4 GB DDR3 |
| Camera Interface | 4‑CH Power Over Ethernet, IEEE 802.3af, 7 W per channel |
| VGA | Analog CRT support up to 1600 × 1200 |
| USB Ports | Four USB 2.0 ports |
| Audio (Option) | AC97, Mic In / Speaker Out |
| Digital I/O (Option) | 16‑CH Isolated Digital I/O, 5 kV isolation |
| Operating Temperature | 0 °C to 55 °C |
| Dimensions | 200 mm × 165 mm × 85 mm (W × D × H) |
| Power Consumption | 50 W (with 2 GB DDRAM and 2 GB CompactFlash) |
It uses an Intel® Core™2 Duo P8400 processor running at 2.26 GHz.
The system supports up to four Gigabit Ethernet cameras via Power over Ethernet (PoE) ports.
