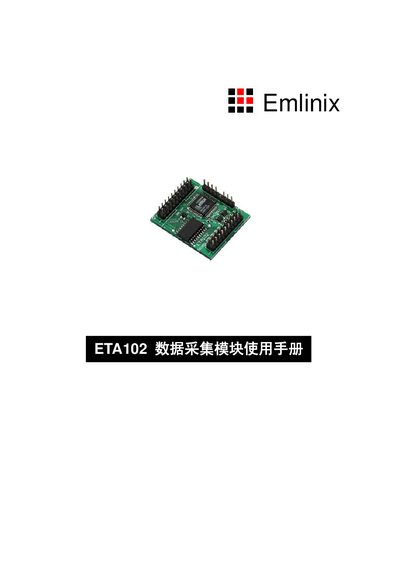

ETA102 is a AD conversion module for Emlinix industrial control board. ETA102 has 10 AD input channels and 2 DA output channels. Through the simplified ISA bus, it is connected with Emlinix industrial control board. Users can use the interface functions provided by Emlinix company to operate ETA102 to collect data. It is very convenient to use.
This manual describes the ETA102 data collection module, including its physical dimensions, operating temperature range, power requirements, and sampling capabilities. It also lists the pin assignments and electrical characteristics needed for integration into a system.
The document contains contact information for EmLinix support, detailed pin‑out tables, and reference design guidelines to help users configure and operate the module safely and effectively.
| Operating Temperature | 0°C‑70°C |
|---|---|
| Dimensions | 40 mm × 36 mm |
| Maximum Sampling Rate | 100 ksps |
The module operates from 0 °C to 70 °C.
The module measures 40 mm by 36 mm.
The module can sample at up to 100 ksps.
