SGG1 series 50A1200V IGBT module is a high-performance IGBT module that uses SPT chip technology, MOS input control, and has high switching frequency, high short-circuit capability, and optimized EMC characteristics. It is widely used in AC and DC motor control, inverters, UPS, industrial heating power supplies, welding machines and other fields.

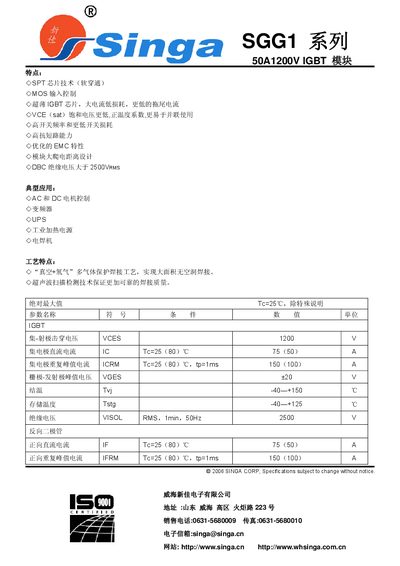

This document presents the key specifications of the SINGA SGG1 series 50A1200V IGBT module, including its voltage and current ratings, switching characteristics, and thermal performance. It also lists mechanical data such as package dimensions, weight, and terminal layout.
Typical applications for the module are indicated, covering both AC and DC control, UPS systems, and heating elements. The sheet includes detailed tables of electrical parameters, thermal resistance values, and mechanical characteristics to aid designers in selecting and integrating the device. This manual is written in Japanese.
| Collector‑Emitter Voltage (VCE) | 1200 V |
|---|---|
| Collector Current (IC) typical | 75 A |
| Forward Voltage Drop (VGES) | 20 V |
| Operating Temperature Range (Tv) | -40 °C to +150 °C |
| Package Dimensions (L×W×H) | 94 mm × 34 mm × 30.5 mm |
| Maximum Weight | 176 g |
The module is rated for a collector‑emitter voltage of 1200 V.
The typical collector current is 75 A at 25 °C (80 °C rating).
