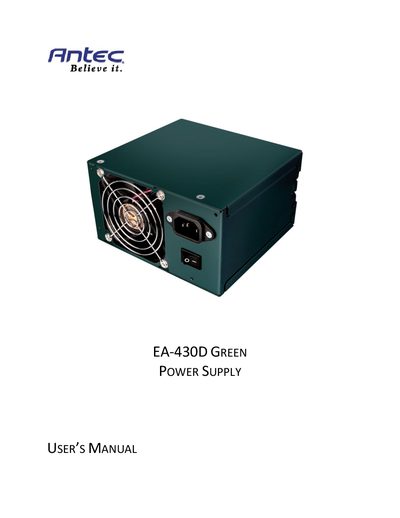

EA-430D Green is a 430W power supply that meets the 80PLUS Bronze standard and supports ATX12V v2.3 and EPS12V v2.91 specifications.
The EA-430D Green is an 80 PLUS Bronze certified power supply delivering up to 430 W of continuous power with universal 100‑240 V AC input, Active Power Factor Correction, and industrial‑grade safety circuitry including OVP, SCP and OCP. It meets ATX12V v2.3 and EPS12V v2.91 standards and features dual +12 V rails for balanced power distribution.
The manual lists detailed output capacities, connector assignments (24‑pin main, 4+4 ATX12V/EPS12V, Molex, SATA, PCI‑E, floppy) and OCP set points, and provides step‑by‑step installation instructions. Note that the unit does not include a power cord; an existing cord should be reused to reduce waste.
| Total Output Power | 430 W |
|---|---|
| +12 V Rail Combined Output | 384 W |
| +3.3 V and +5 V Combined Output | 115 W |
| Input Voltage Range | 100‑240 V AC |
| Efficiency (80 PLUS Bronze) | ≥ 82 % |
| OCP Set Points | +3.3 V 31 A, +5 V 36 A, +12 V 27 A |
| Power Connectors | 24‑pin main, 4+4 ATX12V/EPS12V, 4 × Molex, 5 × SATA, 4 × 6‑pin PCI‑E, 1 × Floppy |
It includes Over Voltage Protection (OVP), Short Circuit Protection (SCP) and Over Current Protection (OCP).
No, the unit does not include a power cord; you should reuse an existing cord.
It uses dual +12 V rails to balance power distribution and prevent voltage sag between devices.
It is certified 80 PLUS Bronze, guaranteeing at least 82 % efficiency across a wide load range.
