EDS-405A/408A is a series of intelligent 8 or 5-port web-managed Ethernet switches designed for industrial applications. It supports various network management functions, including Turbo Ring, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, etc. The series of switches also support EtherNet/IP and Modbus/TCP industrial Ethernet protocols, compatible with EtherNet/IP and PROFINET protocols for transparent data transmission. It also features Turbo Ring redundancy, port mirroring, event-triggered alarms, and more.

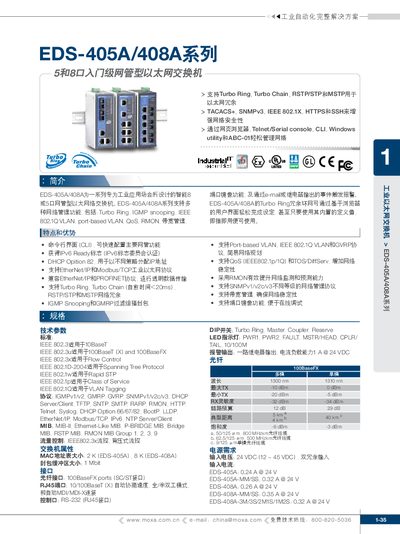

The EDS-405A/408A series is a family of intelligent 5‑ or 8‑port managed Ethernet switches designed for industrial automation. It offers a range of network management functions such as Turbo Ring, IGMP snooping, VLAN, QoS, RMON, bandwidth management, and supports protocols like EtherNet/IP, Modbus/TCP, and PROFINET.
The manual covers hardware specifications, power requirements, environmental ratings, safety certifications, ordering options, and accessories. It also explains configuration methods via web browser, CLI, Telnet/Serial console, and the Moxa MXview management software. This manual is written in Chinese.
| Number of ports | 5 or 8 |
|---|---|
| MAC address table size | 2 K (EDS‑405A) / 8 K (EDS‑408A) |
| Packet buffer size | 1 Mbit |
| Input voltage | 24 VDC (12 ~ 45 VDC), dual redundant |
| Dimensions (W×H×D) | 53.6 × 135 × 105 mm |
| Weight | 650 g (standard models) |
| MTBF | 392,000 h (EDS‑405A series) |
The switches require a 24 VDC input (12 ~ 45 VDC range) with dual redundant power inputs.
