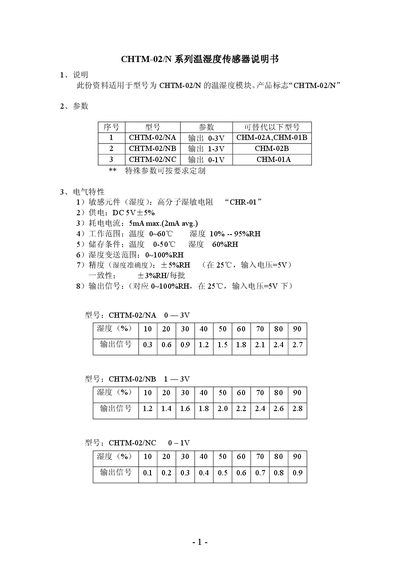

This document is the instruction manual of CHTM-02/N series temperature and humidity sensor, which introduces the parameters, characteristics and usage methods of this product.
This manual describes the CHTM-02/N series temperature and humidity sensors, including their operating principles, output characteristics, and recommended measurement conditions. It also lists compatible replacement models and optional custom parameters.
The document contains electrical specifications, dimensional drawings, connection diagrams, packaging information, and handling precautions. It explains how to connect the sensor pins for power, humidity output, ground, and temperature output, and provides accuracy and temperature‑coefficient data. This manual is written in Chinese.
| Output voltage (CHTM-02/NA) | 0‑3 V |
|---|---|
| Output voltage (CHTM-02/NB) | 1‑3 V |
| Output voltage (CHTM-02/NC) | 0‑1 V |
| Humidity measurement range | 0‑100 % RH |
| Temperature measurement range | 0‑60 °C |
| Humidity accuracy | ±3 % RH at 25 °C |
| Temperature coefficient | 0.49 % RH/°C |
| Power consumption | 2 mA avg. |
| Dimensions (housing) | 61 mm × 27 mm × 17 mm |
The CHTM-02/NA model provides an output voltage range of 0 to 3 V.
The sensor can measure humidity from 0 % to 100 % RH.
Recommended operating conditions are 0‑30 °C temperature and 60‑90 % RH humidity.
Connect pin 1 to +5 V, pin 2 to the humidity output (yellow), pin 3 to ground (black), and pin 4 to the temperature output (green).
