SA8 is an automatic vortex oscillation mixer with automatic pressure start or continuous operation function. It has a variable speed range of 200 to 2500rpm. It has a stable body, sturdy and easy to clean structure, and variable mixing speed. SA8 can be equipped with various accessories to meet various applications.
The SA8 is a multi‑function vortex mixing instrument with a sturdy body and easy‑to‑clean construction. It offers two operating modes—pressure‑start and continuous run—and a "Touch" instant mode, with an integrated hook to secure containers for long‑duration mixing. Various accessories are available to suit different lab applications.

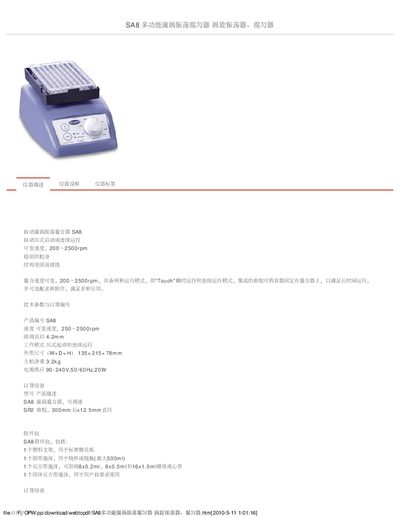

Technical specifications include a variable speed range of 200‑2500 rpm, a 4.2 mm orbital diameter, compact dimensions (135 × 215 × 78 mm), a net weight of 3.2 kg, and a power supply of 90‑240 V, 50/60 Hz, consuming 20 W. The accessory pack contains a plastic holder for microplates, foam inserts for beakers, flasks, and microcentrifuge tubes, and a solid rectangular foam for custom use. This manual is written in Chinese.
| Speed range | 200–2500 rpm (variable) |
|---|---|
| Orbital diameter | 4.2 mm |
| Dimensions (W×D×H) | 135 × 215 × 78 mm |
| Net weight | 3.2 kg |
| Power supply | 90‑240 V, 50/60 Hz, 20 W |
| Operating modes | Pressure‑start and continuous run |
It provides a variable speed from 200 to 2500 rpm.
It operates on 90‑240 V, 50/60 Hz and consumes 20 W.
The device offers pressure‑start, continuous run, and a "Touch" instant mode.
It includes a plastic holder for standard microplates, a round foam for beakers or flasks up to 500 ml, a rectangular foam for various micro‑centrifuge tubes, and a solid rectangular foam for user‑specified use.
