The ADAM-5000 series is a data acquisition and control system with features such as intelligent signal conditioning, analog I/O, digital I/O, RS-232 and RS-485 communication.

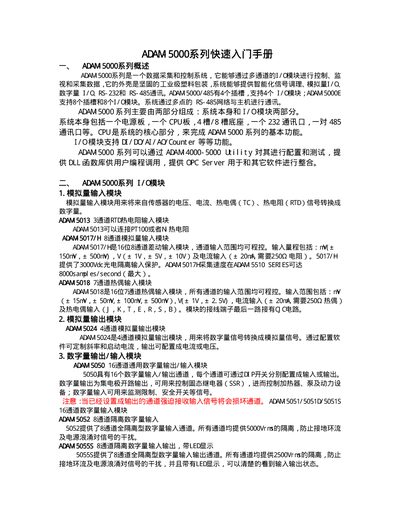

The ADAM-5000 series is a modular data acquisition and control system offering a variety of analog and digital I/O modules, RS‑232/RS‑485 communication, and optional isolation. The guide describes the different I/O modules (e.g., ADAM‑5017, ADAM‑5050, ADAM‑5052) and their channel counts and isolation ratings.
It also covers hardware wiring (power supply 10‑30 VDC, baud rate 9600 B/s, RS‑485 slot configuration), installation of the ADAM‑4000‑5000 Utility software, terminal functions, and basic command/communication methods for configuring and testing the modules. This manual is written in Chinese.
| Baud rate | 9600 B/s |
|---|---|
| Power supply voltage | 10‑30 VDC |
| RS‑485 slots (ADAM‑5000/485) | 4 slots |
| Digital I/O channels (ADAM‑5050) | 16 channels |
| Isolation voltage (ADAM‑5055S) | 2500 V |
The default baud rate is 9600 B/s.
It operates on a 10 V to 30 V DC power supply.
The ADAM‑5050 module provides 16 digital I/O channels.
