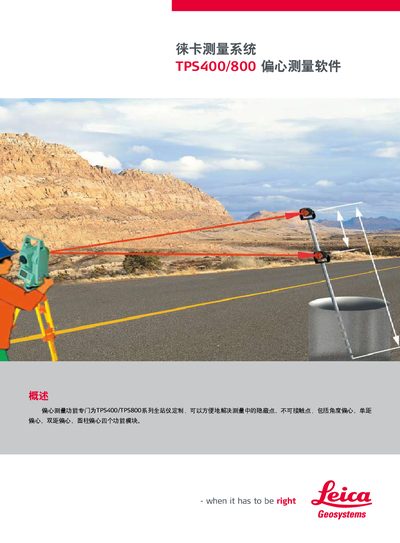

This document introduces the eccentric measurement function of Leica TPS400/800 series total station. Eccentric measurement function can be used to measure hidden points and inaccessible points, including angle eccentricity, single distance eccentricity, double distance eccentricity and cylinder eccentricity four functional modules.
The TPS400/800 eccentric measurement software provides four functional modules—angle, single‑distance, double‑distance, and cylindrical eccentric measurements—to determine coordinates of hidden, non‑visible, or cylindrical points. By placing a prism at a known offset point, the software calculates the target point coordinates using geometric relationships.
The software integrates with Leica Geo Office, allowing users to invoke eccentric measurement at any stage of a survey. Customizable output formats facilitate data management, and the functions support both line‑of‑sight and non‑line‑of‑sight scenarios. This manual is written in Chinese.
| Software Integration | Leica Geo Office |
|---|
The software uses angle, single‑distance, double‑distance, and cylindrical eccentric measurement modules to calculate coordinates of hidden or inaccessible points.
Yes, the double‑distance and single‑distance eccentric measurement functions enable measurement of non‑visible points.
The software allows custom output formats, making data management convenient.
